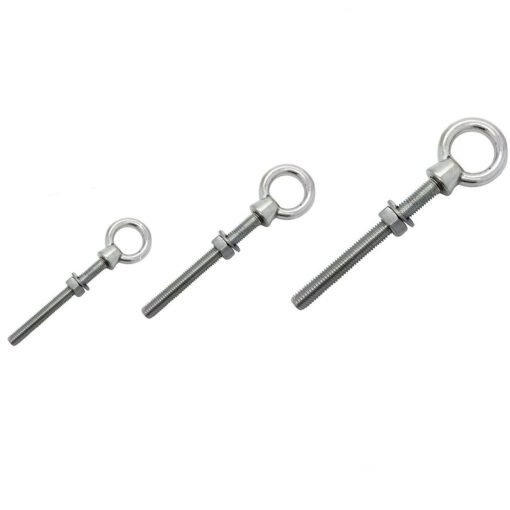

Long Shank Eye Bolt

Long Shank Eye Bolt with Full Nuts and Washer Stainless Steel Marine Grade

Long Eye Bolt Design: Our long shank bolt provides extended reach with its long threaded, allowing you to securely fasten it even in thicker materials. This added length enhances stability and safety during lifting.

Lifting Eye Bolt: The integrated lifting eye ensures compatibility with a wide range of rigging equipment, such as hooks, shackles, and cables. It simplifies the attachment process, saving you valuable time on the job.

General Description for A4 Marine Grade 316 Stainless Steel

• High quality Stainless Steel nuts also known as a Lifting eye nut made of durable A4 stainless steel. Full details and technical specifications below.

• What is A4 Stainless Steel? A4 grades of stainless steel are usually reserved for use in highly caustic environments where improved resistance to pitting corrosion is required, i.e Marine and exhausts. Pitting corrosion occurs once the chromium becomes exhausted through self-passivation after caustic attack – the effects as usually local to the exposed areas. The pitting forms as the Iron atoms become exposed to Oxygen and form ‘rust’.

How to use:
From time to time small parts and components need replacing on a wide range of machines and accessories for the automotive industry. We have the solution for many of these replacement problems. Used with a machine, spanner or cap screw for mechanically joining materials together.  Used widely for matching screws or bolts.

Technical Details

Lifting Eye Long Shank Eye Bolt

M6

Overall height – 90mm
Thread lenght is 60mm
Inside diameter is 16mm

M8
Overall height – 120mm
Thread lenght is 80mm
Inside diameter is 20mm

M10
Overall height – 150mm
Thread lenght is 100mm
Inside diameter is 25mm

Color: Stainless Steel Finish

Counting Tolerances: We make every effort to count fasteners accurately using our professional counting weighing scales.  As these scales are extremely sensitive, the slightest change in the working environment can have an effect on the instrument.  Please rest assured that we expect over 99% of our orders to be correctly counted and packed, but we would like to advise you that a 5% tolerance either greater than or less than what you have ordered may be shipped.  This will generally apply to the smaller ranges in our catalogue.
